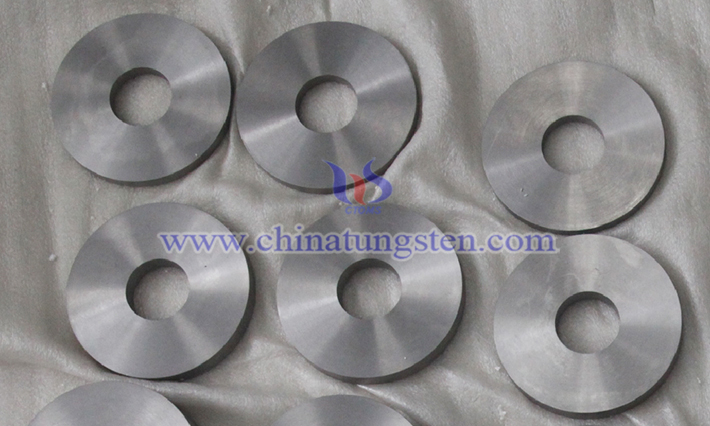

Based on high density, conductive tungsten alloy rings combine conductivity, thermal conductivity, arc resistance, controllable magnetism, and good mechanical properties. Within a limited space, they can serve as counterweight components with high inertial mass and handle stable electrical signal or current transmission tasks, finding wide application in electronics, aerospace, and medical equipment.
Performance of Conductive Tungsten Alloy Rings
1. High Density
The density of conductive tungsten alloy rings is typically between 16.5 and 18.8 g/cm3, far exceeding that of ordinary metals. This characteristic allows them to provide a large mass within a limited volume, enabling miniaturization and center of gravity control in devices. For example, in vibration motors or gyroscopes, the high-density ring helps generate sufficient inertial torque to meet the high inertia requirements of compact structures. It is important to emphasize that tungsten alloys are high-density products, making lightweighting impossible, which is one of the core reasons why they are irreplaceable in miniaturization applications.
2. Good Electrical Conductivity
Conductivity varies depending on the alloy type and composition. Tungsten-nickel-copper alloy rings (WNiCu) have a conductivity of 13%–17% IACS; tungsten-nickel-iron alloy rings (WNiFe) generally have a conductivity of 10%–14% IACS; and tungsten-silver alloy rings (WAg) exhibit the best conductivity, exceeding 45% IACS. Conductivity can be adjusted and optimized to some extent by changing the copper and silver content in the binder phase to meet different current levels and signal transmission requirements.
3. Controllable Magnetism
By selecting different binder phases, conductive tungsten alloy rings can be precisely controlled from weakly magnetic to non-magnetic. For example, tungsten-nickel-copper alloys, lacking iron, exhibit non-magnetic properties, achieving zero magnetic interference in applications highly sensitive to magnetic field interference, such as magnetic resonance imaging equipment and magnetic levitation bearings; while tungsten-nickel-iron alloys possess weak magnetism and can be used in some electromagnetic shielding applications.
4. High Temperature Resistance and Arc Erosion Resistance
Inheriting the high melting point (3422°C) of tungsten, the conductive tungsten alloy ring maintains structural stability under high-temperature conditions, exhibiting significantly better arc erosion resistance than ordinary copper alloys. This property makes it particularly suitable for applications involving frequent switching or high-current switching, such as high-voltage switches and relays, effectively extending the service life of electrical contact components.
5. Good Thermal Conductivity
The thermal conductivity of tungsten alloys is approximately five times that of die steel, and its coefficient of thermal expansion is only 1/2 to 1/3 that of iron or steel. This excellent thermal management capability makes it crucial in applications such as heat sink rings for high-power semiconductor devices and electronic packaging rings, rapidly transferring heat from hot spots to the heat dissipation structure, improving device reliability and lifespan.
6. High Strength and Good Toughness
The conductive tungsten alloy ring boasts a tensile strength of 800~1500MPa and an elongation of approximately 8%~25%, overcoming the drawbacks of pure tungsten, such as high brittleness and difficulty in processing. Meanwhile, the optimized binder phase makes the ring less prone to breakage under impact or vibration, enabling it to adapt to complex working environments and assembly requirements.
CTIA GROUP and its parent company, Chinatungsten Online, leverage 30 years of professional flexible customization experience to customize high-performance tungsten alloy products according to customer needs, covering a wide range of applications including radiation shielding, industrial sealing, precision instruments, aerospace, medical devices, defense, oil drilling, automotive manufacturing, electronic packaging, high-temperature furnaces, and nuclear protection. CTIA GROUP's tungsten alloy product website is www.tungsten-alloy.com, email is sales@chinatungsten.com, and phone is +86 592 5129595.
