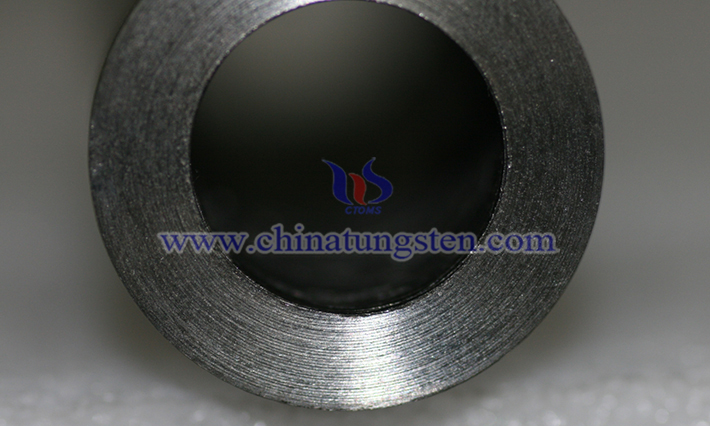

High-strength tungsten alloy rings are high-density ring components made using powder metallurgy liquid-phase sintering technology, with tungsten (W) as the matrix and the addition of metallic elements such as nickel (Ni), iron (Fe), and cobalt (Cu) as binder phases.
The most outstanding performance of high-strength tungsten alloy rings lies in their excellent mechanical properties. The tensile strength of sintered tungsten-nickel-iron alloy rings is 800~1000 MPa. After further heat treatment or deformation processing, the strength can be increased to 1300~1500 MPa, and the elongation can reach 8%~30%. They are not prone to brittle fracture or fatigue failure when subjected to large impacts, vibrations, or centrifugal forces. The continuous skeleton formed by tungsten particles gives the material good hardness and wear resistance, while the binder phase provides strong plastic deformation capability.
In terms of other physical properties, the high-strength tungsten alloy ring has a coefficient of thermal expansion of 4~6×10??/℃, approximately 1/2 to 1/3 that of steel, exhibiting high dimensional stability. Its thermal conductivity is about five times that of die steel, with a room temperature thermal conductivity of approximately 70~100 W/m·K, effectively conducting heat. The alloy demonstrates good stability against strong acids such as hydrochloric acid, sulfuric acid, and nitric acid at room temperature, and contains no toxic components such as lead, making it recyclable throughout its entire lifecycle. Depending on the composition of the binder phase, the magnetic properties of the high-strength tungsten alloy ring can be precisely controlled from weak magnetism to non-magnetism.
In practical engineering, high-strength tungsten alloy rings, due to their excellent tensile strength, high density, and dimensional stability, have been widely used in various high-end manufacturing fields. In inertial navigation systems, high-strength tungsten-nickel-iron alloy rings are used as gyroscope rotor rings, ensuring dynamic balance and shock resistance during high-speed rotation. In oil drilling downhole tools, tungsten alloy sealing rings withstand high pressure differentials and the scouring of sand-laden fluids, maintaining reliable seals on drill string connections. In medical linear accelerators, tungsten alloy collimator rings, with their high density and radiation attenuation capabilities, precisely control the direction of the treatment beam. Furthermore, on high-performance CNC machine tool spindles, tungsten alloy balance rings are used for high-speed dynamic balancing compensation, significantly suppressing vibration and improving machining accuracy.
CTIA GROUP and its parent company, Chinatungsten Online, leverage 30 years of professional flexible customization experience to customize high-performance tungsten alloy products according to customer needs, covering a wide range of applications including radiation shielding, industrial sealing, precision instruments, aerospace, medical devices, defense, oil drilling, automotive manufacturing, electronic packaging, high-temperature furnaces, and nuclear protection. CTIA GROUP's tungsten alloy product website is www.tungsten-alloy.com, email is sales@chinatungsten.com, and phone is +86 592 5129595.
