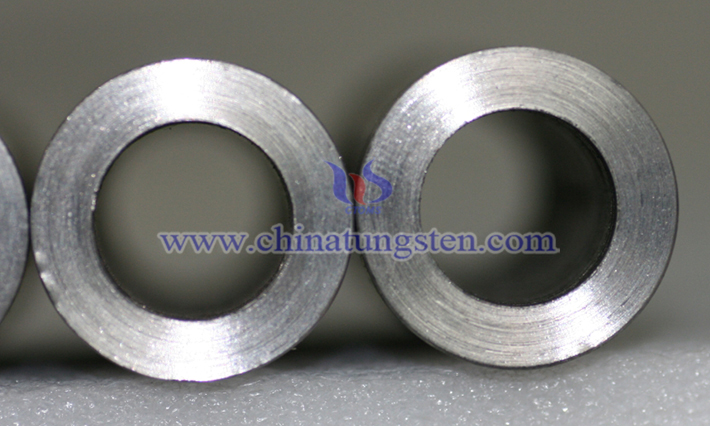

CTIA GROUP's high-strength tungsten alloy rings are ring-shaped high-density components made with tungsten as the main component (85%~98%), and with the addition of nickel, iron, cobalt, and other metals as binder phases, using powder metallurgy liquid-phase sintering technology. Based on their high density (16.5~19.3 g/cm3), high tensile strength (800~1500 MPa), good toughness (elongation 8%~30%), low coefficient of thermal expansion, and controllable magnetism, high-strength tungsten alloy rings are widely used in various industrial fields.
I. Gyroscope Rotor Rings in Aerospace and Inertial Navigation
In the inertial navigation systems of satellites, rockets, missiles, and aircraft, gyroscopes are the core components for maintaining attitude and heading. CTIA GROUP manufactures high-strength tungsten alloy rings for gyroscope rotors. During operation, the rotor rotates at tens of thousands of revolutions per minute, generating stable angular momentum. The high density of the tungsten alloy allows the rotor to achieve a sufficiently large moment of inertia within a small volume, thus improving the gyroscope's stability and anti-interference capabilities; its high strength ensures that the rotor does not deform or break under centrifugal force and vibration loads. Based on magnetic performance requirements, tungsten-nickel-iron alloy rings (weakly magnetic) are used in conventional gyroscopes, while tungsten-nickel-copper alloy rings (non-magnetic) are used in electromagnetic levitation or optical gyroscope systems sensitive to magnetic fields.
II. Sealing Rings in Oil Drilling and Deep-Sea Equipment
In oil drilling downhole tools, high-strength tungsten alloy rings are machined into sealing rings with precision end faces or grooves, capable of withstanding pressure differentials of up to tens of megapascals and the severe erosion and corrosion from drilling fluids and sand-laden fluids. CTIA GROUP's tungsten alloy rings possess high compressive strength and surface hardness, ensuring reliable sealing even under high pressure differentials and preventing high-pressure oil and gas leakage. Simultaneously, their corrosion resistance in seawater and high-salt environments allows them to function stably for extended periods as sealing and support rings in deep-sea oil extraction and subsea pipeline equipment.
III. Collimator Rings in Medical Radiotherapy Equipment
In medical linear accelerators and Gamma Knife systems, high-strength tungsten alloy rings are machined into components of multi-leaf collimators or annular gratings. Tungsten, with an atomic number of 74, possesses extremely strong attenuation capabilities for high-energy X-rays and gamma rays. Tungsten alloy rings, through precise arrangement, form dynamically adjustable radiation fields, ensuring the beam profile closely matches the tumor shape, thereby achieving precise radiotherapy while protecting surrounding healthy tissue.
IV. Balancing Rings in Precision Machine Tools and High-Speed Rotating Equipment
CTIA GROUP's high-strength tungsten alloy rings can be used as balancing rings mounted on rotating shafts in high-performance CNC machine tool spindles, centrifugal pump impellers, and high-speed motor rotors. Due to manufacturing tolerances or wear, rotating components often have slight mass imbalances, causing high-speed vibrations and affecting machining accuracy and equipment lifespan. Installing tungsten alloy balancing rings in predetermined positions allows for precise adjustment of the rotational inertia distribution through weight removal or supplementation. The high density of tungsten alloy provides sufficient counterweight mass in confined spaces, while its high strength ensures that the balancing ring will not loosen or deform under centrifugal force, thus guaranteeing stability during long-term high-speed operation.
V. Pre-fragmented Tungsten Rings in Defense and Military Industries
High-strength tungsten alloy rings are used as pre-fragmented rings in high-explosive fragmentation projectiles, missile warheads, and other munitions. These rings are tightly packed into the inner wall of the projectile. Upon detonation, the tungsten rings uniformly fragment into several fragments with a certain mass and initial velocity according to pre-defined grooves or weak points. Compared to traditional naturally fragmented projectiles, tungsten alloy pre-formed fragment rings produce projectiles of uniform size and regular shape, exhibiting superior aerodynamic performance and significantly increasing kill radius and destructive effect. Tungsten's high density endows the fragments with sufficient penetrating kinetic energy, while its high strength ensures the ring's overall integrity under launch overload and explosive impact until the predetermined fragmentation point.
VI. Chassis Weight Rings in Motor Racing
In high-performance vehicles such as rally cars and Formula One racing cars, CTIA GROUP's high-strength tungsten alloy rings are used as chassis weight rings and steering system balance rings. These rings are typically fastened to pre-drilled cylindrical grooves in the chassis or annular positions on suspension components. The high density of tungsten alloys allows engineers to adjust the vehicle's center of gravity distribution with minimal volume to meet track-specific handling requirements, such as lowering the center of gravity height and optimizing the front-to-rear axle load ratio.
VII. Crankshaft Balance Rings in Marine Engines
In high-power marine diesel engines, the crankshaft and drive shaft system experience torsional vibrations and inertial torques. High-strength tungsten alloy rings are installed on crankshaft counterweights or flywheel housings as balance rings. Their high density provides a sufficiently large balancing mass within limited installation space, effectively suppressing engine resonance and vibration at specific speeds. Simultaneously, the tungsten alloy rings' resistance to seawater and fuel corrosion ensures long-term dimensional and performance stability in the humid, saline environment of ship bilges.
CTIA GROUP and its parent company, Chinatungsten Online, leverage 30 years of professional flexible customization experience to customize high-performance tungsten alloy products according to customer needs, covering a wide range of applications including radiation shielding, industrial sealing, precision instruments, aerospace, medical devices, defense, oil drilling, automotive manufacturing, electronic packaging, high-temperature furnaces, and nuclear protection. CTIA GROUP's tungsten alloy product website is www.tungsten-alloy.com, email is sales@chinatungsten.com, and phone is +86 592 5129595.
