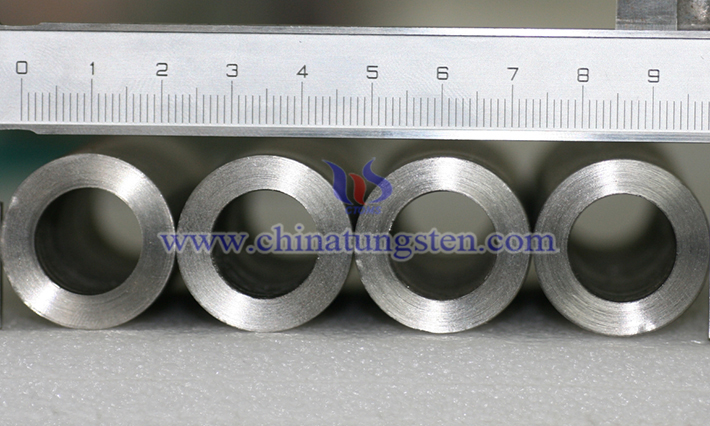

A high-load tungsten alloy ring is a precision ring-shaped component designed specifically to withstand extreme mechanical stresses. Its core value lies in combining extremely high material density (typically 16.5 g/cm3-18.8 g/cm3) with excellent mechanical properties, achieving high-performance balance, counterweight, or structural support within a limited space.
To withstand high loads, the tensile strength of a high-load tungsten alloy ring is typically between 700 MPa and 1200 MPa, and can be increased to 1300 MPa to 1500 MPa through special heat treatment or deformation processing. Furthermore, it does not solely pursue hardness, but rather ensures good toughness by adding binder phases such as nickel, iron, and copper. The elongation can reach 8% to 25%, and the fatigue limit is approximately 200 MPa to 450 MPa, thus enabling it to withstand long-term alternating stress.
Based on composition, high-load tungsten alloy rings are mainly divided into two categories. The first type is tungsten-nickel-iron alloy (WNiFe), which exhibits weak magnetism and outstanding strength and ductility, making it one of the best-performing alloy types overall. It is commonly used in dynamic applications requiring strict strength and high rotational inertia, such as engine crankshaft balance rings, flywheel energy storage rings, and gyroscope rotors. The second type is tungsten-nickel-copper alloy (WNiCu), which is essentially non-magnetic and possesses excellent resistance to seawater corrosion and biocompatibility. It is suitable for applications sensitive to magnetic field environments, such as components in nuclear magnetic resonance imaging equipment, support rings for non-magnetic gyroscopes, and deep-sea ballast rings.
In practical applications, high-load tungsten alloy rings primarily play three roles: First, utilizing their ultra-high density and large moment of inertia, they serve as balancing rings in high-speed flywheels, precision machine tool spindles, and other equipment to suppress vibration and improve precision. Second, thanks to their extremely high tensile strength and hardness, they are used as sealing rings and bearing retaining rings in aero-engines, chemical pumps, compressors, and other equipment, withstanding high pressure differentials, wear resistance, and impact resistance. Third, under extreme conditions of high temperature, high pressure, and strong radiation, such as in aerospace engines and nuclear reactors, they maintain structural integrity and functional reliability by relying on the extremely high melting point of the tungsten matrix (approximately 3422℃) and excellent dimensional stability.
CTIA GROUP and its parent company, Chinatungsten Online, leverage 30 years of professional flexible customization experience to customize high-performance tungsten alloy products according to customer needs, covering a wide range of applications including radiation shielding, industrial sealing, precision instruments, aerospace, medical devices, defense, oil drilling, automotive manufacturing, electronic packaging, high-temperature furnaces, and nuclear protection. CTIA GROUP's tungsten alloy product website is www.tungsten-alloy.com, email is sales@chinatungsten.com, and phone is +86 592 5129595.
